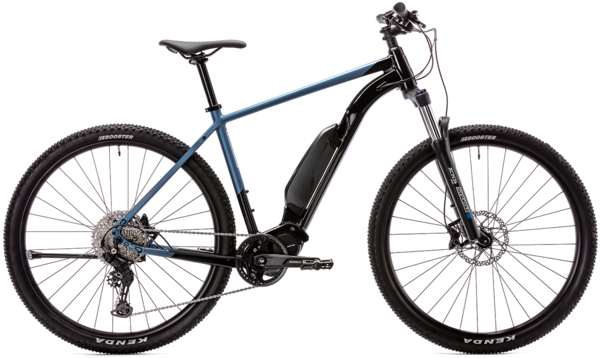

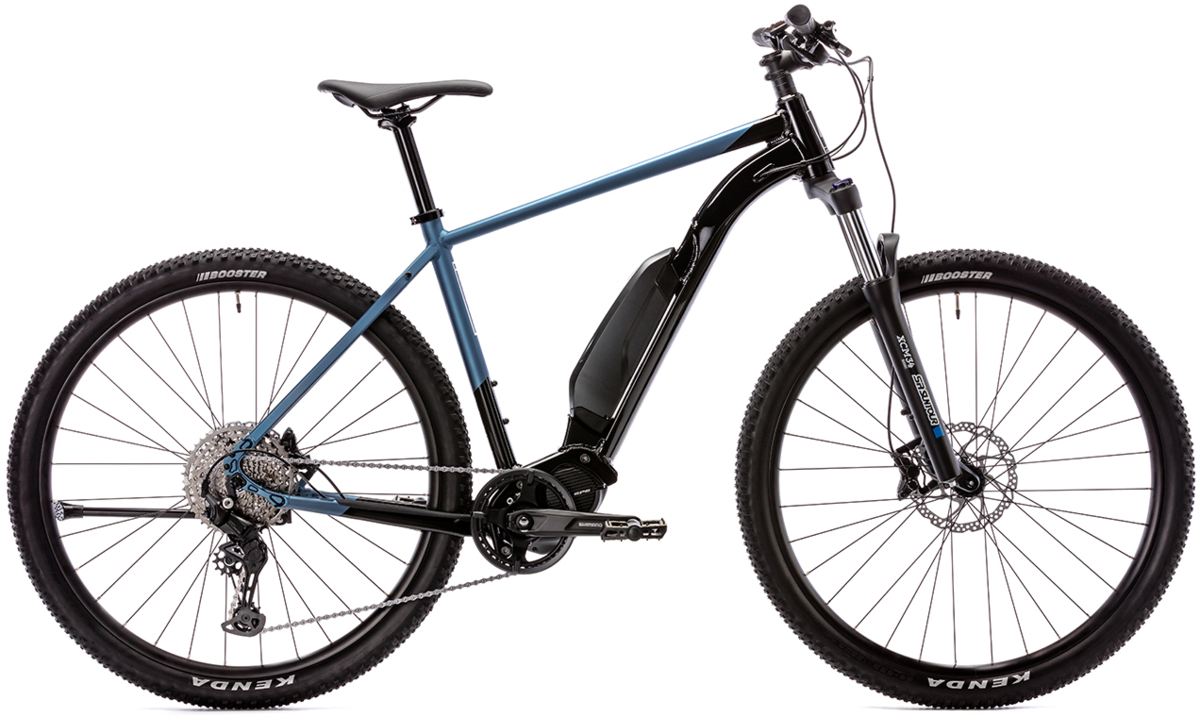

Opus Railtrail EP6
$3,599.99
Details
EXPLORE AROUND AND BEYOND
Now there’s the Opus Railtrail — a versatile lineup of Opus e-bikes geared for cycling adventure on fire roads and scenic byways. With their rugged design and always-dependable performance, these spirited bikes offer an unmatched experience for nature enthusiasts and explorers alike.
Key elements:
- Lightweight trail inspired aluminum frame
- Suntour XCM-34 100 mm fork with lockout
- Shimano CUES 1x11 drivetrain
- Shimano MT420 4-piston hydraulic disc brakes
- Shimano EP600 motor and EN-604 418Wh semi-integrated battery
| Size | Small | Medium | Large |
|---|---|---|---|
| Rider’s height (± 5CM) | 155 | 165 | 178 |
| Rider’s height (± 2″) | 5’1″ | 5’5″ | 5’10” |
| Seat tube (mm) | 430 | 480 | 510 |
| Top tube (mm) | 557 | 585 | 616 |
| Head tube (mm) | 100 | 115 | 130 |
| Head angle | 69 | 69.5 | 69.5 |
| Seat angle | 74.5 | 73.5 | 73.5 |
| Chain stay (mm) | 445 | 445 | 445 |
| BB drop (mm) | 65 | 65 | 65 |
| Stack (mm) | 627 | 645 | 657 |
| Reach (mm) | 383 | 395 | 421 |
| Stand over (mm) | |||
| Handlebar width (mm) | 780 | 780 | 780 |
| Stem length (mm) | 45 | 45 | 55 |
| Crank length (mm) | 170 | 170 | 170 |
Specs
| Frame | Meta 30 aluminum |
|---|---|
| Fork | Suntour XCM-34 100mm NLO boost with lockout |
| Rims | Weinnman U32 TL |
| Hubs | Shimano |
| Tires | Kenda Booster 29 x 2.2 |
| Crankset | Shimano FC-EM600 |
| Chainrings | 38 |
| Shifters | Shimano CUES U6000 11 |
| Rear Derailleur | Shimano CUES U6000 |
| Cassette/Freewheel | Shimano 11-45 |
| Chain | KMC eGlide EPT |
| Brakes | Shimano BR-MT420 hydraulic disc |
| Brake Levers | Shimano BL-MT401 |
| Handlebars | Zoom Tequila 780mm 35.0° |
| Tape/Grips | Velo ERGO dual density |
| Stem | Zoom Tequila 45/55mm |
| Headset | FSA Orbit integrated sealed |
| Seatpost | Promax 31.6 x 350mm |
| Saddle | Velo ERGO dual density |
| Pedals | FPD NW-420 |
| Motor | Shimano motor EP600 250W 85Nm |
| Battery | Shimano EN-604 418Wh 36V 11.6Ah battery |
| Controller/Display | SC-EN500 Switch with integrated display |
* Subject to change without notice.
