Details
Charge harder. Hold bigger lines. Go faster.
Unlock new levels of confidence with the Altitude. Every feature, trail, and line is The new standard in enduro capability and confidence.
Race circuits or Sunday Shreds, the Altitude has you covered. Purpose-built and race-proven, it’s the ultimate enduro weapon for demolishing steep trails and making every session faster. Sure, total enduro capability translates nicely to podiums. But it also means bigger and more committing weekend rides for the rest of us. With so much capability in your corner, it makes you want to push limits, climb faster, and get better.
What sets the Altitude apart
Unapologetically enduro focused geometry
Enduro lives at Altitude—so we cut zero corners in making a purpose-built, 100% committed Enduro bike. Designed to position the rider directly over the front end for unyielding control, expect the Altitude to make short work of anything and everything—and to shave every second possible while doing it.
Enduro greatness for every rider
Any size fits the Altitude. That’s why we designed the Altitude in five distinct frame sizes. It’s not simply making it bigger or smaller—it’s tweaking the geometry and setup to match the nuances of a larger or smaller frame. Then, two-wheel sizes ensure every rider can find the perfect Altitude to shred.
Any trail. Any Altitude.
Every trail is at Altutide's level. Whatever gets thrown your way, our RIDE-9 adjustment system and 2-position rear axle allows you to adjust your geometry for the fastest possible setup for the trail ahead.
Wheel size:
- Sizes Small – Medium: 27.5-inch
- Sizes Medium – X-Large: 29-inch
Size (Wheel Size) | Medium (29) | Large (29) | X-Large (29) |
---|---|---|---|
Ride-9 Position | Pos. 5 - Neutral | Pos. 5 - Neutral | Pos. 5 - Neutral |
Top Tube Horizontal (mm) | 610 | 638 | 671 |
Head Tube Angle (deg) | 65 | 65 | 65 |
Head Tube Length (mm) | 95 | 110 | 125 |
Seat Tube Angle (deg) | 76 | 76 | 76 |
Seat Tube Length (mm) | 420 | 445 | 480 |
Rear Centre (mm) | 437 - 448 | 437 - 448 | 437 - 448 |
Bottom Bracket Drop (mm) | 27 | 27 | 27 |
Reach (mm) | 455 | 480 | 510 |
Stack (mm) | 620 | 634 | 647 |
Standover Height (mm) | 816 | 816 | 816 |
Wheelbase (mm) | 1217 | 1249 | 1285 |
Small | Medium | Large | X-Large | |
---|---|---|---|---|
27.5" Wheels | 155 - 167.5 cm / 5'1" - 5'6" | 165 - 175 cm / 5'5" - 5'9" | Not available for this frame size | Not available for this frame size |
29" Wheels | Not available for this frame size | 167.5 - 177.5 cm / 5'6" - 5'10" | 175 - 188 cm / 5'9" - 6'2" | 185.5 - 198 cm / 6'1" - 6'6" |
Specs

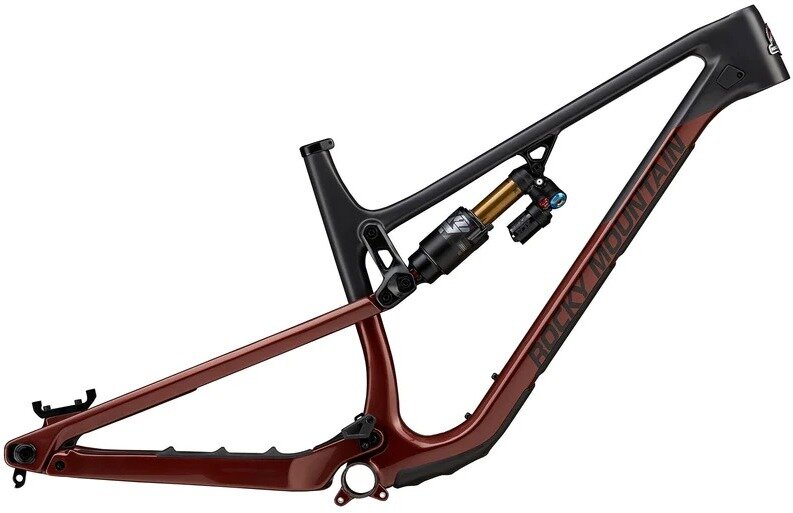

Frame | SMOOTHWALL™ Carbon | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-9™ Adjustable Geometry | 2 Position Axle | 160mm Travel. SMOOTHWALL™ Carbon Rear Triangle |
---|---|
Rear Shock | Fox Float X2 Factory | Sealed Bearing Eyelet | 25x8mm F Hardware | SM = 210x55mm | MD - LG - XL = 230x60mm |
* Subject to change without notice.
