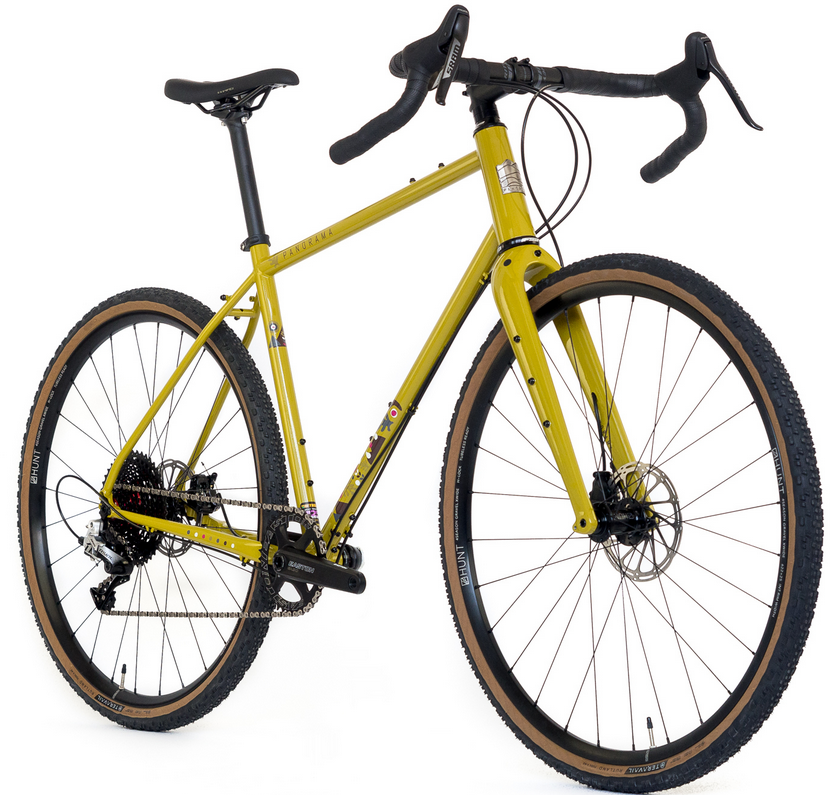

Panorama Anticosti
Details
When you venture on the less traveled roads of the backcountry, sometimes, the beautiful road becomes much more bumpy than what was predicted. The asphalt becomes gravel, and the gravel literally becomes an off-road trail. It is for this kind of adventure that the Anticosti was created.
The Anticosti frame is built with a bespoke selection of Reynolds 725 steel tubing, thinned where it is needed to reduce weight. A generous tire clearance allows you to install 27.5×2.1 or 700×50 tires with fenders. For 2023, our steel frame gravel bike has a revised geometry (shorter seattube length and slightly slacker head tube angle) and new curved chainstays offering more clearance to the rear tire.
A Rival buildkit, Easton crankset, Hunt wheels and Teravail 700×42 tires makes this bike ready for a quick gravel loop, or for a more ambitious multi-day trip project.
| SMALL | MEDIUM | LARGE | |
|---|---|---|---|
| APPROXIMATIVE CYCLIST HEIGHT | 5’2’’ – 5’5’’ | 5’6’’ – 5’10’’ | 5’11’’ – 6’2’’ |
| STANDOVER HEIGHT | 730mm | 765mm | 795mm |
| HEAD TUBE ANGLE | 70° | 70.5° | 71° |
| SEAT TUBE ANGLE | 73.5° | 73.5° | 73° |
| STACK | 574mm | 599mm | 625mm |
| REACH | 370mm | 381mm | 393mm |
| HEAD TUBE LENGTH | 140mm | 165mm | 190mm |
| SEAT TUBE LENGTH | 475mm | 505mm | 525mm |
| HORIZONTAL TOP TUBE LENGTH | 540mm | 559mm | 584mm |
| CHAINSTAY LENGTH | 440mm | 440mm | 440mm |
| BB DROP | 70mm | 70mm | 70mm |
| FORK RAKE/OFFSET | 55mm | 55mm | 55mm |
| WHEELBASE | 1046mm | 1061mm | 1077mm |
| TRAIL | 71mm | 68mm | 65mm |
| STEM LENGTH | 70mm | 80mm | 90mm |
BUTTED REYNOLDS 725 TUBESET
ELECTRODEPOSITION SURFACE TREATMENT (CORROSION PROTECTION)
12MMX142MM THRU AXLE
BSA 68mm BOTTOM BRACKET
1-1/2¨ x 1-1/8¨ TAPERED HEADTUBE
FLAT MOUNT DISC BRAKE
REAR RACK MOUNTS
WATER BOTTLE MOUNTS UNDER AND OVER THE DOWNTUBE
WATER BOTTLE MOUNTS ON SEAT TUBE
GAS TANK MOUNT ON TOP OF TOP TUBE
FRONT DERAILLEUR READY
FENDER MOUNTS
29.8MM SEAT CLAMP
27.2mm SEATPOST
28.6MM FRONT DERAILLEUR CLAMP
HEADSET: TOP ZS44 LOWER EC49
MAX CHAINRINGDS: 53-39-30
TIRE CLEARANCE: 700X50; 650X2.1
FENDER AND REAR RACK EYELETS
COLOR: WASABI GREEN
HIGH STRENGTH CARBON
TOOLING/DESIGN: 100% PROPRIETARY PANORAMA CYCLES
TRIPLE CARGO CAGE MOUNTS
FENDER MOUNTS
12MMX100MM SPACING
INTERNAL CABLE ROUTING FOR DYNAMO HUB
TAPERED STEER TUBE 1-1/8¨ / 1-1/2¨
MAX TIRE CLEARANCE : 700X50MM OR 650X2.1¨
COLOR: WASABI GREEN
HUNT 4SEASON GRAVEL DISC X WIDE 700c
TERAVAIL RUTLAND 700X42 TAN, LIGHT AND SUPPLE
SRAM RIVAL 11SPD
SRAM RIVAL 11SPD
EASTON EA90, 38T
EASTON 30MM, BSA
SUNRACE CSMX8, 11-46T
KMC X11
