Details

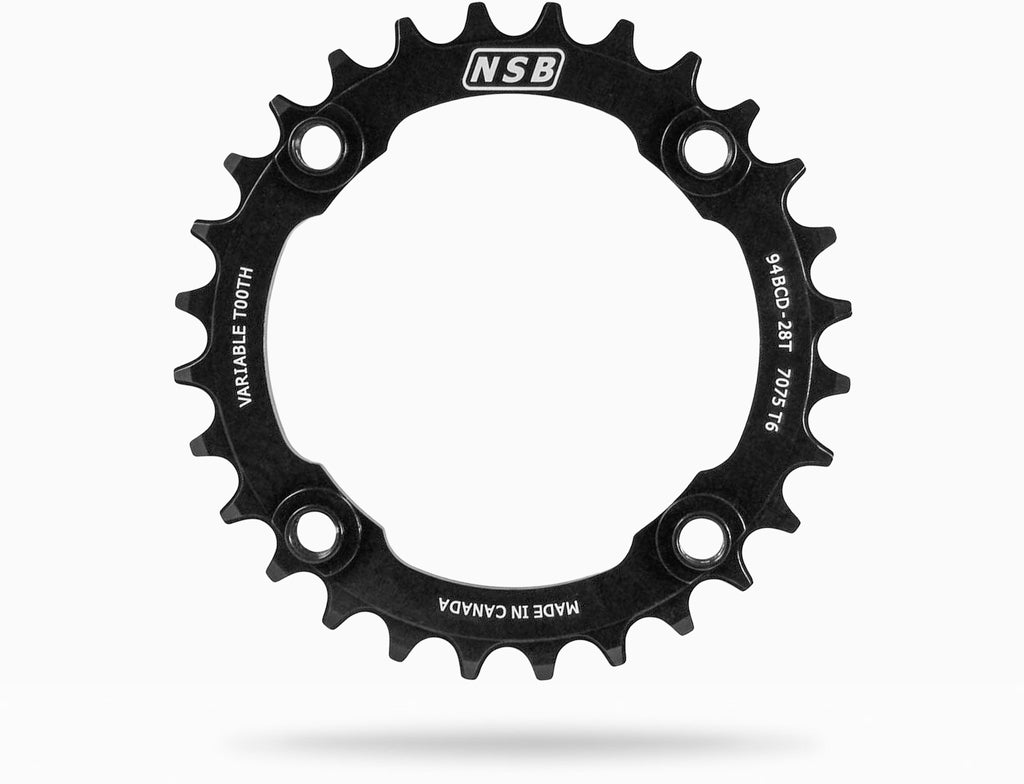

SRAM 94 BCD narrow-wide chainrings for X01 and X1 cranks. Our NSB narrow-wide rings are CNC machined in Canada and feature a durable tooth profile that virtually eliminates chain drop.
Note: The 28T – 94 BCD ring does not use the OE screws. The NSB 28T ring requires 4x M8 x 0.75 x 10mm long bolts. These are commonly available at your LBS and are the most commonly used bolt and nut combination to mount chainrings to cranks. All other sizes, 30T–36T, use the OE screws.
Specifications:
- 94mm Bolt Diameter Circle (4-bolt 94 BCD)
- Bottom Bracket Types: BB30 & GXP
- Chainline: 28T is 48mm / 30T–36T are 49.5mm
- Machined from solid 7075 T6 Aluminum
- Anodized Black with Laser Etched Graphics
- Compatible with all 9, 10, 11, & 12-speed SRAM drivetrains
- Compatible with all 9, 10, & 11-speed Shimano drivetrains
Precision CNC Machined in Whistler, BC
Weight:
28T – 40g
30T – 37g
32T – 42g
34T – 55g
36T – 65g
