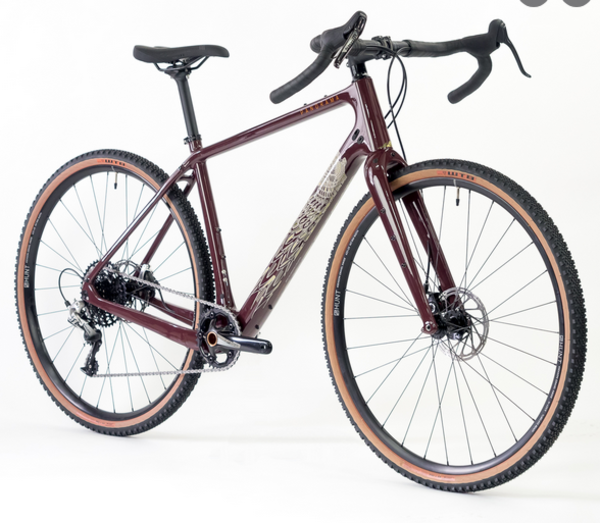

Panorama Katahdin

The first generation of the Katahdin has proven itself both in races, gravel events and in bikepacking trips. For its second iteration, the Katahdin gets a makeover with progressive gravel geometry and new features to make it even more versatile.

A relaxed 70deg steering angle, longer reach, 75mm bb drop and 430mm chainstays increase the wheelbase of the bike and place the rider in a stable and comfortable position. The goal is less fatigue, and more speed for long outings and / or races.

The internal cables for an adjustable seat post, the fork adapted to the use of a dynamo hub, a threaded bottom bracket shell and all the mounts necessary to install bags and accessories are among the features of the Katahdin.


FRAME:

HIGH STRENGTH CARBON
TOOLING/DESIGN: 100% PROPRIETARY PANORAMA CYCLES
INTERNAL CABLE ROUTING FOR ADJUSTABLE SEATPOST
BRAKE STD: FLAT MOUNT
REAR RACK MOUNTS
WATER BOTTLE MOUNTS UNDER AND OVER THE DOWNTUBE
WATER BOTTLE MOUNTS ON SEAT TUBER
GAS TANK MOUNT ON TOP OF TOP TUBE
FENDER MOUNTS
12MMX142MM REAR SPACING
BSA 68mm BOTTOM BRACKET
TAPERED 1-1/2¨ x 1-1/8¨ HEAD TUBE
INTEGRATED HEADSET: TOP IS42 LOWER IS52
DIA 31.8MM SEAT POST CLAMP
DIA 27.2MM SEAST POST
FRONT DERAILLEUR: BRAZE-ON REPLACEABLE
MAXIMUM TIRE CLEARANCE: 700X48MM OR 650X2.1¨
COMPATIBLE DI2
MAX CHAINRINGS: 2X 50/34T, 1X 46T
FRAME WEIGHT: 1350g (LARGE)
COLOR: BURGUNDY


FORK:

HIGH STRENGTH CARBON
TOOLING/DESIGN: 100% PROPRIETARY PANORAMA CYCLES
TRIPLE CARGO CAGE MOUNTS
FENDER MOUNTS
12MMX100MM SPACING
INTERNAL CABLE ROUTING FOR DYNAMO HUB
TAPERED STEER TUBE 1-1/8¨ / 1-1/2¨
MAX TIRE CLEARANCE : 700X50MM OR 650X2.1¨
COLOR: BURGUNDY
