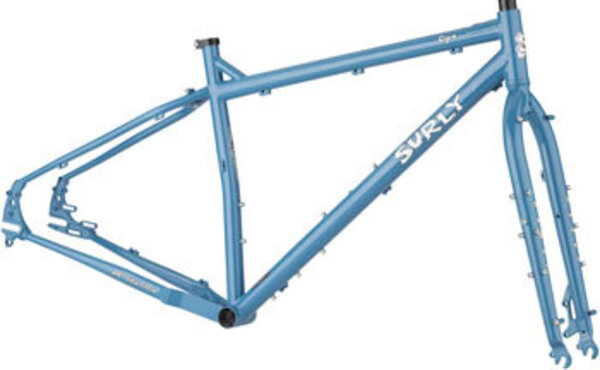

Surly Ogre Frame | Large | Blue

The Ogre can get you to your job during the week, then way out of town on the weekend. It’s not sluggish on pavement or gravel and can also hold its own on singletrack. Ogre has many of the same features as Troll — horizontal slotted dropouts with Gnot-Boost spacing, a tweaked non-suspension corrected geometry, and a beefy tire clearance — but in a 29er platform.

Surly 4130 chromoly steel, main triangle double-butted frame
TIG-welded, Horizontal slotted with derailleur hanger, Gnot-Boost spacing allows the use of 135mm QR hub, 142 x 12mm thru-axle or 148 x 12mm Boost hubs. Features Rohloff torque arm slot and threaded eyelets for fenders, racks and Surly trailer mounts
Full-length Surly Trip Guide housing line guides for derailleurs and brakes; two sets of bottle cage mounts; upper seatstay threaded barrels, mid- and low-blade fully threaded through-blade fork eyelets; threaded holes for racks, fenders and trailer mounting nuts; Rohloff OEM2 axle plate mounting slot
Disc brakes only. Disc mounts are 51mm IS. Note: rear disc brake is limited to 160mm maximum rotor diameter and requires the use of Surly caliper adaptor (included with frames and bikes)
Frame is ED Coated for increased life expectancy
Tire clearance for 29 x 2.5” or 27.5 x 3”



Color: Cold Slate Blue
Wheel Size: 29"
Brake Type: Disc
Front Axle: QR x 100mm
Platform: Ogre
Fork Type: Rigid
Frame Material: Steel
TT (Effective): 615
Defined Color: Blue
Mfg Size: Large
Rear Axle: 12mm Thru x 142mm
Frame Type: Rigid
