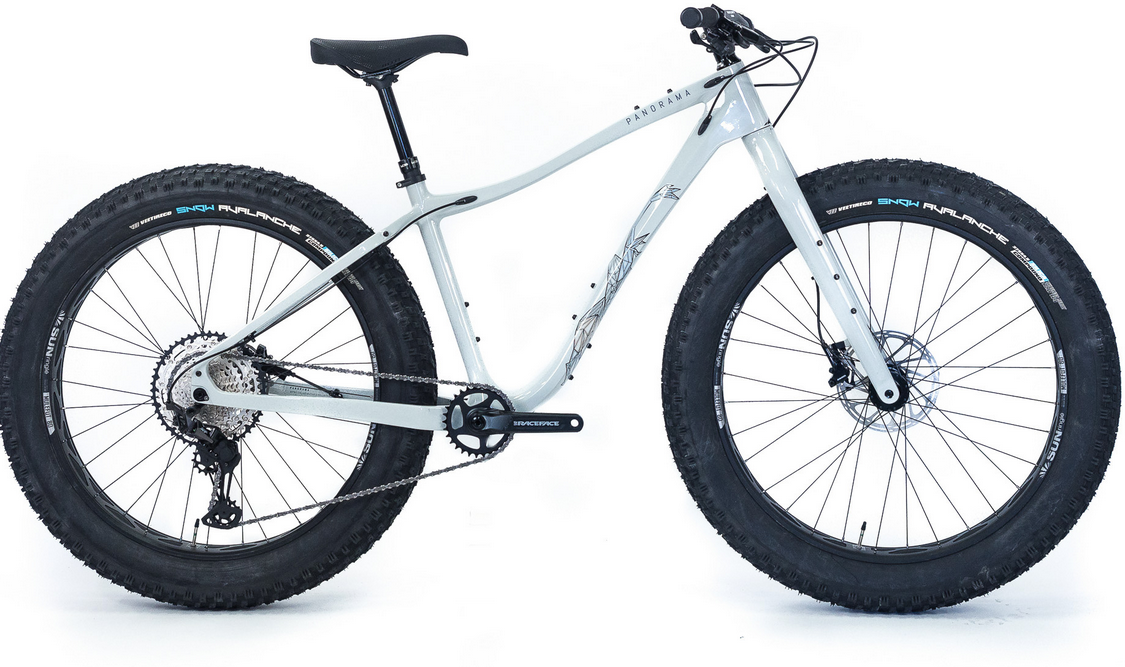

Panorama Chic-Chocs 27.5 | XT
Details
The Chic-Chocs has proven its abilities over the past few years in endurance races and winter expeditions. Whether it’s for the Raid du Fjord, the Wendigo Ultra, or riding with confidence on groomed trails, the Chic-Chocs delivers.
A stable geometry with a long wheelbase increases traction and flotation on soft surfaces. In addition, the Chic-Chocs is designed with a 205mm q-factor, the narrowest available for use with tires up to 5? wide. Not to be overlooked for an ergonomic position.
Two Shimano drivetrains available with RaceFace cranksets and cockpit. Quality SunRingle rims and hubs (ready for -30degC!), and studdable tires that can be easily converted tubeless complete the package.
Throw on some 29×3? wheels when the snow melts, and you’ve got a 4-season bike ready for backcountry bikepacking trips!
Specs
| Frame | Frame TAILORED CARBON CONSTRUCTION 12MMX197MM REAR AXLE BSA 100mm BOTTOM BRACKET CARBON NET-SHAPE INTEGRATED HEADSET INTERNAL CABLE ROUTING BRAKE STD: POSTMOUNT SEATPOST DIA 31.6MM SEATPOST CLAMP DIA 34.9MM FRAME PROTECTORS INCLUDED SUSPENSION FORK COMPATIBLE MOUNTS FOR REAR RACK, 3 WATER BOTTLES, TOP TUBE BAG COLOR: LIGHT GREY |
|---|---|
| Fork | TAILORED CARBON CONSTRUCTION 15MMX150MM AXLE ANYTHING CAGES MOUNTS TAPERED 1-1/8¨ / 1-1/2¨ |
| Headset | FSA NO.42/ACB 1.5” TAPER |
| Rims/Wheels | SUN RINGLE MULEFÜT 80SL V2, 27.5”, 32 HOLES |
| Hubs | SUN RINGLE SRC – MICROSPLINE FREEHUB BODY |
| Spokes | 14G STAINLESS BLACK |
| Tires | VEE SNOW AVALANCHE 27.5X4.5?, 120TPI, TUBELESS READY, STUDDABLE |
| Crankset | RACE FACE AEFFECT, 28T CINCH DM CHAINRING |
| Bottom Bracket | RACE FACE BSA TEAM |
| Chain | KMC X12-126L, 12 SPEEDS |
| Rear Derailleur | SHIMANO XT RD-M8100, 12 SPEEDS |
| Rear Cogs | SHIMANO SLX CS-M7100-12, 10-51T, 12 SPEEDS |
| Shifters | SHIMANO XT SL-M8100, 12 SPEEDS |
| Handlebars | RACE FACE CHESTER 35MM, 35MM RISE, 780MM |
| Stem | RACE FACE RIDE, 35MM, 50MMX6DEG |
| Brakes | SRAM LEVEL T HYDRAULIC |
| Saddle | PANORAMA SPEC, 273MM X 148MM |
| Seat Post | TRANZ-X JD-YSP15 DROPPER, 100MM |
* Subject to change without notice.
