Details

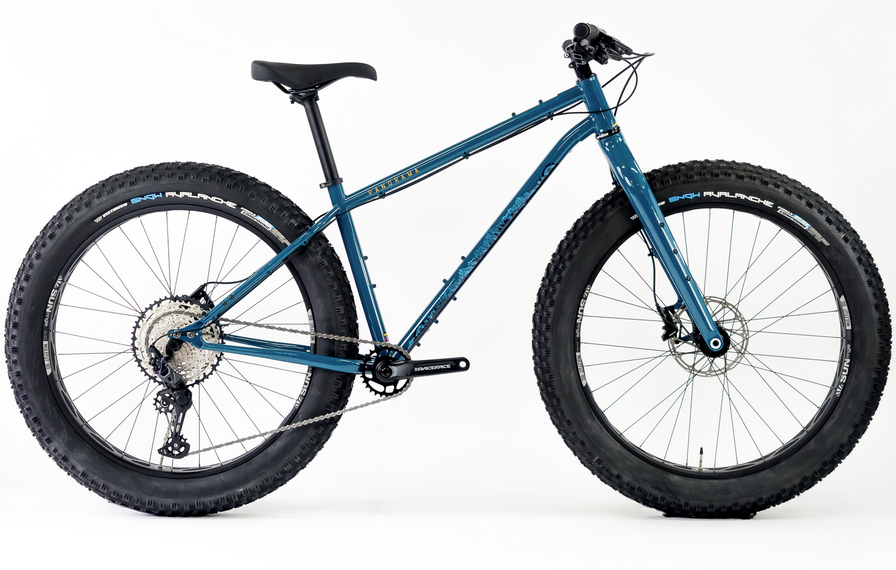

Isolated in northern Quebec, located in the Arctic Cordillera, the Torngat Mountains are frequented only by those who have the real will to face the elements of nature. We do not get there by chance. It is a mythical place that imposes respect. An highly inspiring destination for the Torngat fatbike!
We have included in this bike the features needed to make it completely versatile. Among other things, the frame is belt-drive compatible, it has an access for a dropper seatpost and is equipped with horizontal rear wheel dropouts. The Reynolds 725 high-grade steel tubing frame and the light, stiff carbon fiber fork accommodate the largest 26? tires available, as well as the 27.5 x 4.5?.
All you have to do is leave the house, get on the bike and explore the territory that is still unknown to you!
Frame
-REYNOLDS 725 STEEL FRAME
-INTERNAL CABLE ROUTING FOR DROPPER SEAT POST
-SLIDING DROPOUTS – SINGLE SPEED / ROLHOFF-BELT DRIVE COMPATIBLE
-POST MOUNT BRAKE STD
-REAR RACK MOUNT
-TRIPLE WATER BOTTLE MOUNT UNDER THE DOWNTUBE
-WATER BOTTLE MOUNT ON SEAT TUBE AND TOP OF DOWNTUBE
-GAS TANK MOUNT ON TOP OF TOP TUBE
-ELECTRODEPOSITION SURFACE TREATMENT (CORROSION PROTECTION)
-12MMX197MM REAR SPACING
-100mm BSA BOTTOM BRACKET
-TAPERED 1-1/2¨ x 1-1/8¨ HEAD TUBE
-DIA 34.9MM SEAT POST CLAMP
-DIA 31.6MM SEAST POST
MAXIMUM TIRE CLEARANCE: 27.5¨X4.5¨; 26¨X5¨ ; 29¨X3¨
Specs
Frame | REYNOLDS 725 STEEL FRAME, INTERNAL CABLE ROUTING FOR DROPPER SEAT POST |
---|---|
Fork | CUSTOM CARBON CONSTRUCTION, THREE PACK MOUNTS ON EACH SIDE |
Rims/Wheels | SUN RINGLE MULEFÜT 80SL V2, 27.5”, 32 HOLES |
Hubs | SUN RINGLE SRC – MICROSPLINE FREEHUB BODY |
Tires | VEE SNOW AVALANCHE 27.5X4.5?, 120TPI, TUBELESS READY, STUDDABLE |
Crankset | RACE FACE AEFFECT, 28T STEEL CINCH DM CHAINRING |
Bottom Bracket | RACE FACE BSA TEAM |
Chain | SHIMANO DEORE CN-M6100, 12 SPEEDS |
Rear Derailleur | SHIMANO SLX RD-M7100, 12 SPEEDS |
Rear Cogs | SHIMANO SLX CS-M7100-12, 10-51T, 12 SPEEDS |
Shifters | SHIMANO SLX SL-M7100, 12 SPEEDS |
Handlebars | RITCHEY MTN COMP, 800MM, 20MM RISE, 10DEG SWEEP |
Stem | RITCHEY MTB TRAIL, 45MM X 3DEG |
Brakes | SRAM LEVEL HYDRAULIC |
* Subject to change without notice.
